Electric Motors

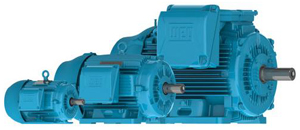

WEG LogoWEG General Purpose Motors Image

Founded in 1961, WEG has grown into a global solutions provider of industrial electrical technologies. WEG is now one of the largest manufacturers of electric motors in the world.

WEG has been selling in the United States since 1977 importing product from WEG plants in Brazil, Portugal, and Mexico for sale throughout the United States.

Motor Products

General Purpose Motors

  • W22 TEFC cast iron frame, three-phase, low voltage induction motors - 0.12 to 500 kW
  • W22 TEFC cast iron frame, three-phase, high voltage induction motors - 90 to 440 kW
  • HGF TEFC cast iron frame, three-phase, low and high voltage induction motors - 90 to 3150 kW
  • W21 TEFC aluminum multi-mounting frame, three-phase, low voltage induction motors -0.12 to 11 kW
  • ODP cast iron frame, three-phase, low voltage induction motors - 11 to 370 kW
  • ODP cast iron frame, three-phase, high voltage induction motors - 250 to 560 kW
  • WQuattro TEFC cast iron frame, thee-phase, low voltage hybrid (permanent magnets + squirrel cage) motors - 0.37 to 7.5 kW
  • Wmagnet TEFC cast iron frame, thee-phase, low voltage permanent magnet motors - 11 to 160 kW
  • W21 TEFC cast iron frame, single-phase, low voltage induction motors - 0.12 to 9.2 kW
  • W21 TEFC aluminum multi-mounting frame, single-phase, low voltage induction motors - 0.25 to 7.5 kW
  • Steel Motor TEFC and ODP steel frame, single and three-phase, low voltage induction motors - 0.12 to 15 kW

Hazardous Area Motors

  • Flameproof TEFC cast iron frame, three-phase, low voltage induction motors - 0.37 to 330 kW
  • Brake Flameproof TEFC cast iron frame, three-phase, low voltage induction motors - 2.2 to 18.5 kW
  • W22X TEFC cast iron frame, three-phase, low and high voltage induction motors - 75 to 1500 kW
  • Non-Sparking (Ex nA and Ex tb) TEFC cast iron frame, low voltage, induction motors - 0.12 to 3150 kW
  • Increased Safety (Ex e) TEFC cast iron frame, three-phase, low voltage induction motors - 0.18 to 100 kW
  • Dust Ignition Proof (Ex tc) TEFC cast iron frame, three-phase, low voltage induction motors - 0.12 to 300 kW

Definite Purpose Motors

  • Wmining TEFC cast iron frame, three-phase, low and high voltage induction motors - 0.12 to 3150 kW
  • IEEE-841 TEFC cast iron frame, three-phase, low voltage induction motors - 0.75 to 220 kW
  • Roller Table TENV cast iron frame, three-phase, low voltage induction motors – 1.1 a 290 kW
  • Crusher Duty TEFC cast iron frame, three-phase, low voltage induction motors - 37 to 375 kW
  • Compressor Duty ODP steel frame, single-phase, low voltage induction motors - 0.37 to 3.7 kW
  • Cooling tower TEFC cast iron frame, three-phase, low voltage induction motors - 0.75 to 75 kW
  • Fire Pump TEFC and ODP cast iron or steel frame, single and three-phase, low voltage induction motors - 0.75 to 370 kW
  • Water Cooled TEWC cast iron frame, three-phase, low voltage induction motors - 18.5 to 450 kW
  • Close-coupled Pump JM/JP TEFC cast iron frame, three-phase, low voltage induction motors - 1.5 to 55 kW
  • Jet Pump JM/JP ODP steel frame, single and three-phase, low voltage induction motors - 0.09 to 2.2 kW
  • Fan and Exaust TEAO cast iron frame, three-phase, low voltage induction motors - 0.12 to 330 kW
  • Fan and Exaust TEAO aluminum frame, three-phase, low voltage induction motors - 0.12 to 9.2 kW
  • Wwash TEFC cast iron frame, three-phase, low voltage induction motors - 0.12 to 0.37 kW
  • Gear Motor TEFC cast iron frame, three-phase, low voltage induction motors - 0.12 to 11 kW
  • Brake Gear Motor TEFC cast iron frame, three-phase, low voltage induction motors - 0.12 to 11 kW
  • Fuel Pump TEFC cast iron frame, single and three-phase, low voltage induction motors - 0.55 to 0.75 kW
  • Smoke Extraction TEFC and TEAO cast iron frame, three-phase, low voltage induction motors - 0.12 to 500 kW
  • Saw Arbor TEFC cast iron frame, single and three-phase, low voltage induction motors - 2.2 to 7.5 kW
  • W22 Multispeed (Dahlander, Double wound or Triple Speed) TEFC cast iron or aluminum frame, three-phase, low voltage induction motors - 0.18 to 120 kW
  • Brake TEFC cast iron frame, three-phase, induction motors - 0.12 to 37 kW
  • Brake TEFC aluminum multi-mounting frame, three-phase, induction motors - 0.12 to 9.2 kW

Appliance Motors

  • Mini Motors for HVAC applications (heat, ventilation and air conditioning systems)
  • Washing Machine motors
  • Air Conditioning motors
  • Electronic Gate motors

Warehouse Locations

Nidec/US Motors Warehouse Locations

  • ESR - Rock Hill, SC
  • Chicago, IL
  • Duluth, GA
  • Harrisburg, PA
  • Houston, TX
  • Ontario, Canada
  • Portland, OR
  • Kansas City, KS
